Thread standard: Metric Fine, ISO DIN 13

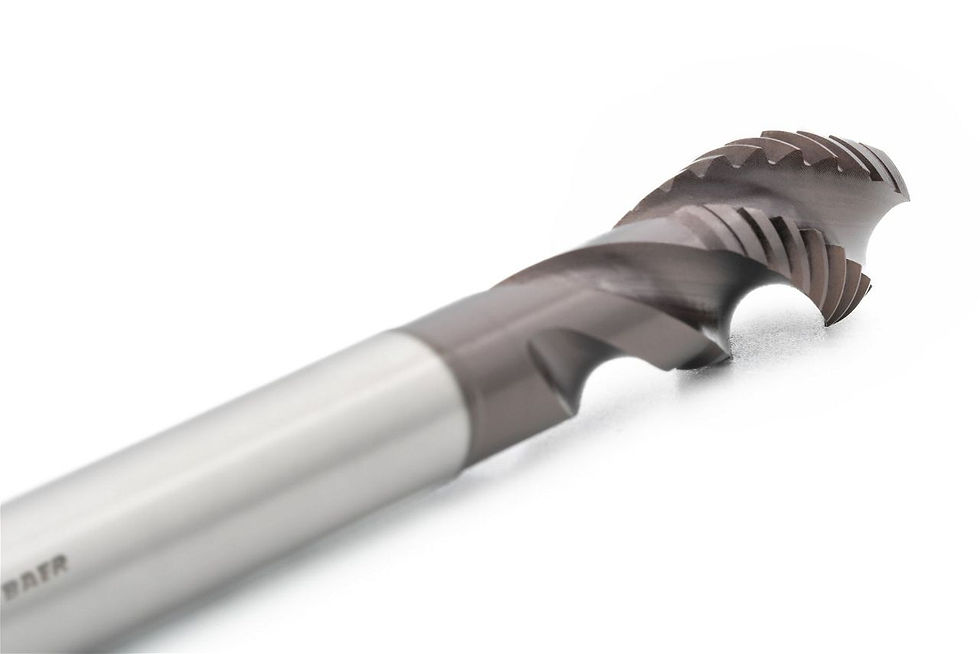

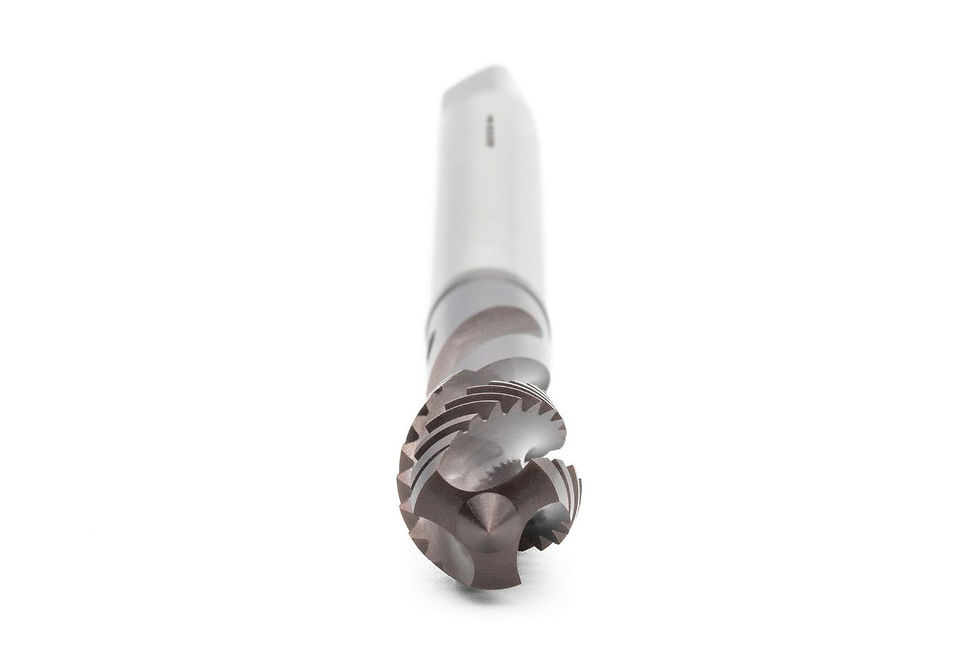

Type: Machine tap Forma C, for blind holes, with spiral flutes
Application: For special alloys
Material of product: HSSE PM
Surface treatment: TiAlN
For materials: Nickel-based superalloys (Incoloy, Inconel, Hastelloy,…), etc*
Tensile strength up to: 1200 N/mm2
Standard: DIN 374
Tolerance: ISO2/6H
Special geometry, base material (powder metal) and surface treatment for nickel-based superalloys.
The TiAlN surface treatment increases the surface hardness (approx. 3300 HV), the sliding properties (friction coefficient: 0,25) and with high temperature resistance up to 800°C. It provides a better cutting performance and increased tool life time.
The base material is powder metal (HSSE PM) with a higher hardness and toughness.
Tap for machine use and through holes. The spiral point pushes the chips ahead and prevents clogging of the flutes.
*Materials:
- Nickel-based superalloys Incoloy 825, Inconel 718, Nimonic 75, Hastelloy X
- Titanium alloys TiAl6V4, TiAl6V4Sn2
- High strength material up to max. 1200N/mm²
- Alloyed heat-treatable steel, cast iron with nodular graphite, malleable cast iron
- Aluminium cast and wrought alloys Si<10% (average chip length)
- Copper alloys and copper-zinc alloys (long and short chipping)
Our taps and dies are produced to the highest quality standards, to ensure precise quality threads. Wide range of hand, machine and rolling taps, dies and tools for cutting professional threads on various materials
Correct lubrication is important for successful thread cutting and to decrease the wear of taps and dies. We recommend using our lubricants. We also have holding tools for taps and dies: Tap wrenches, die holders, die guides and more
Brand: Baer Tools (Germany)
Macho de máquina Forma C, ran. helicoid., 45°, para aleaciones especiales, MF
